Creating icons by composing multiple images

This tutorial explains how to make an icon by composing multiple images from a library of icon parts in RealWorld Icon Editor.

Step 1: Prepare the environment

This tutorial assumes that you have already downloaded and installed image pack of parts called Vista by Kudesnick - Round. If you do not have this library, please download and install it before continuing.

To download an image pack, open RealWorld Cursor Editor and go to the Online page. Then find the Media packs section rsrc/red-border.png image

- you may either close the sections above it or simply scroll down. Finally, click on the Download link next to Vista by Kudesnick - Round and wait until the download finishes.

Step 2: Create a new image

Although our ultimate goal is to create an icon, we start by creating a raster image. Switch to the Create page, select New raster image wizard, set image size to 256x256 pixels and click on the Create button.

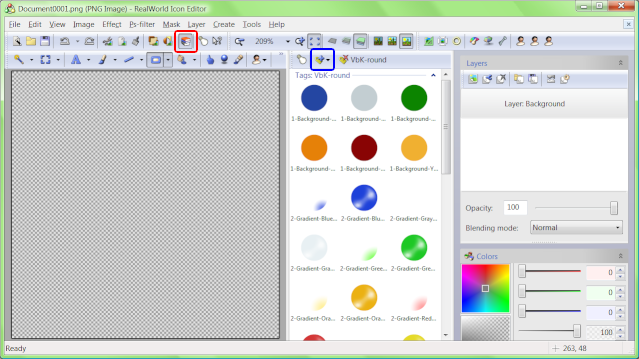

Click on the Media library button rsrc/red-border.png image

in the toolbar to display panel with media library. Then click on the Activate tag rsrc/blue-border.png image

button and choose VbK-round in the menu.

Step 3: Compose and customize

Double-click the 1-Background-Blue.png file in the media panel. Notice that a new layer containing the blue sphere was added. Alternatively, you can drag and drop the image from the media library onto the layer list or onto the raster editor. If you drop it on the raster editor, it will be added as a floating selection rather than a layer.

Do it again, this time with 2-Gradient-BlueDouble.png. Note that the second image is drawn on the top of the first one. You can adjust properties of the new layer such as opacity or blending mode.

Add third file - 3-Symbol-Home.png. Because the images are added as layers, you can apply effects to them. Simply click on Colorize in the Effect menu and change the color of the symbol to yellow. You can apply effects to any layer at any time.

Add three more images: 4-Effect-HilightDouble.png, 4-Effect-ReflectionRounded.png, and 5-Frame-Metal-2.png.

Step 4: Create an icon

Simply click on Create icon button in toolbar or in Create menu. New window opens and allows you to select sizes to generate. The defaults should be OK, so just click OK.

A little extra

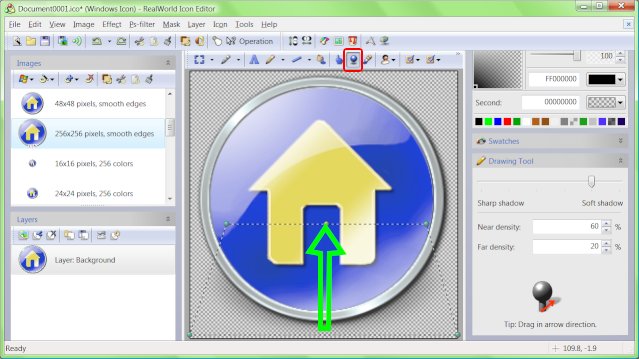

The icon looks fine, but let's add a projected shadow to the largest image. Switch to Projected shadow tool rsrc/red-border.png image

and drag with your mouse as indicated by the red arrow on the following screenshot. Experiment with the properties of the Shadow tool to get the results you like.

Switch to Projected Shadow tool and drag with your mouse as indicated by the green arrow to create a projected shadow.

If you followed the steps of this tutorial, your icon will be similar to the following one:

I have cheated a bit and actually moved the large icon by few pixels up to have more space for shadow 😉. Feel free to do the same.

Summary

Creating icons from parts is matter of minute or two. While combining images does not offer the same level of freedom as manual icon design does, it is a viable alternative and has many applications.

When combining images, feel free to use all other features of the application. Remember that you can apply filters like Motion Blur or rotate parts of the final image to customize the resulting icon. When creating small versions of icons, consider using operation Remove Empty Border and applying a shadow during image to icon conversion to get different and possibly better results.
